Introduction

In this new series we will cover how to manage your server environment using Azure Arc.

But first, what is Azure Arc?

Azure Arc is the place to manage your servers if you are allowed to have them internet connected. It simplifies governance and the management by being able to manage both cloud servers and on-prem environments. It gives you an easy overview if your servers are compliant, which is very close to how we manage clients in Microsoft Intune.

In part 1 we will cover how to get started and have your first server managed by Azure Arc.

clip_image002

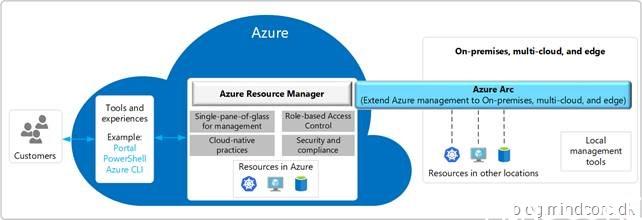

Picture source: https://docs.microsoft.com/en-us/azure/azure-arc/media/overview/azure-arc-control-plane.png

Read more about its key features here Azure Arc overview – Azure Arc | Microsoft Docs



Overview of the series:

  • Part 1 – Enabling Azure Arc (this post)
  • Part 2 – Fundamental’s (log analytics and automation account)
  • Part 3 – Update Management
  • Part 4 – Change tracking and inventory
  • Part 5 – Configuration policies
  • Part 6 – Security (Defender for Servers)



Requirements



I have a resource group called ARC.

Before proceeding we need to make sure the subscription has the resource providers ready:

clip_image004



clip_image006

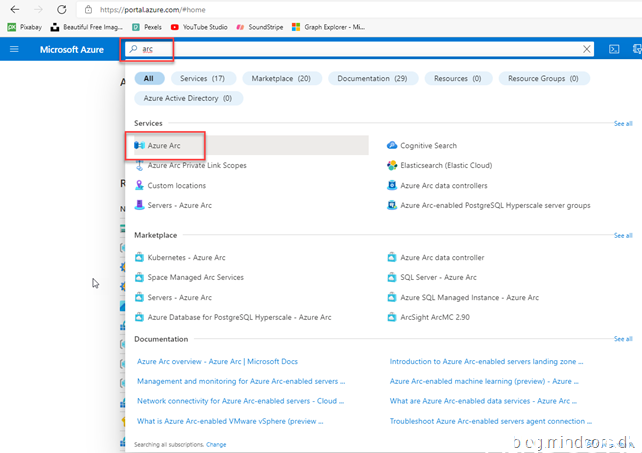

When the resource providers has been added we can search for "Arc" in the portal.

clip_image008

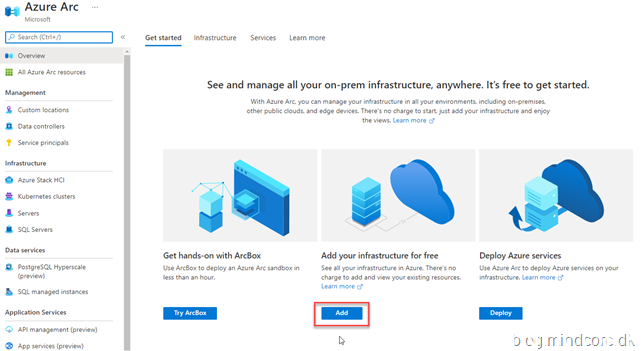

Under "Add your infrastructure for free" Click Add

clip_image010

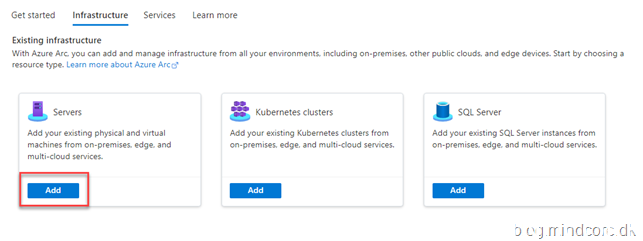

Under Servers click add

clip_image012



Generate script

clip_image014

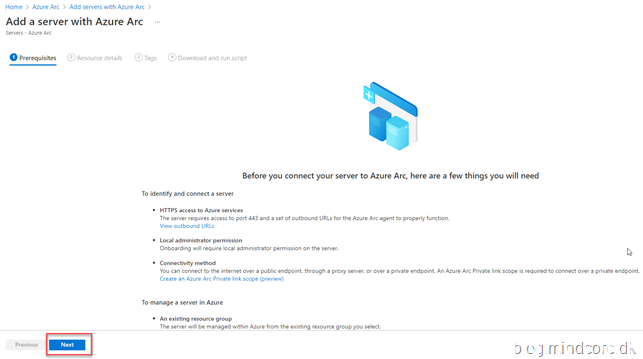

Click Next

clip_image016

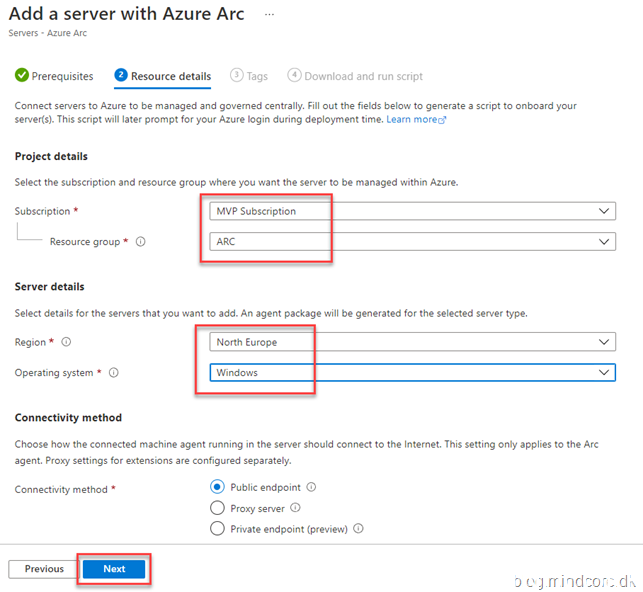

Choose the resource group you created prior to this blog post "ARC"

Choose a region and Operating system that fits you. In this case North Europe and Windows.

clip_image018

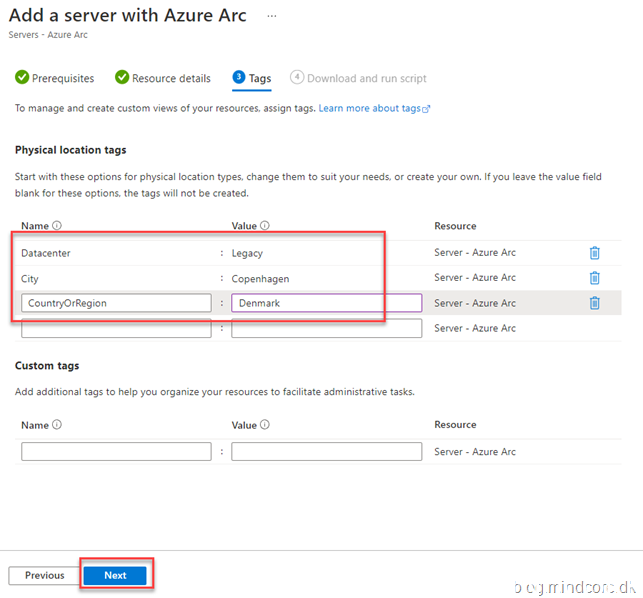

For governance sake add some tags that fit into your environment.

clip_image020



Download the script.

clip_image022

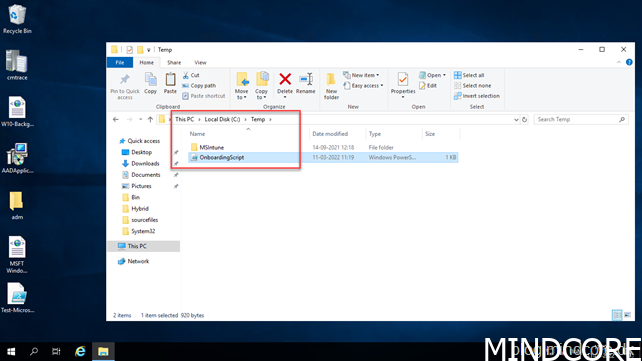

Add the script to the server you like to onboard.

clip_image024

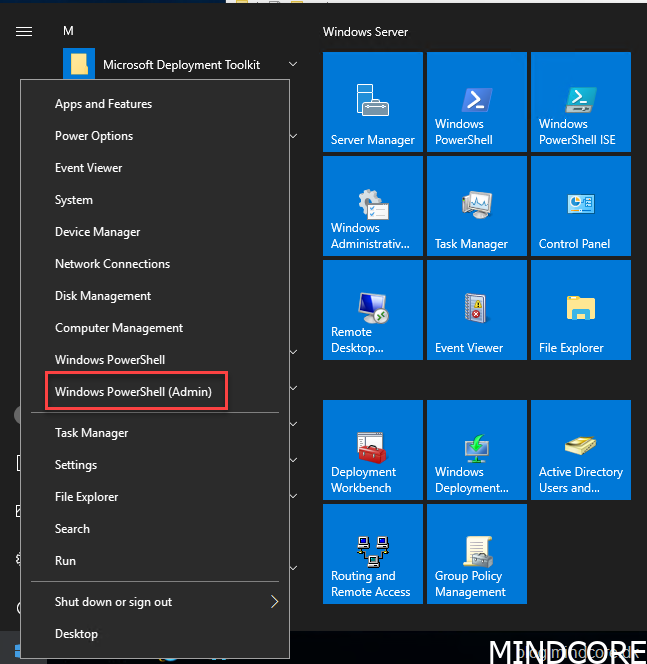

Start PowerShell elevated

clip_image025

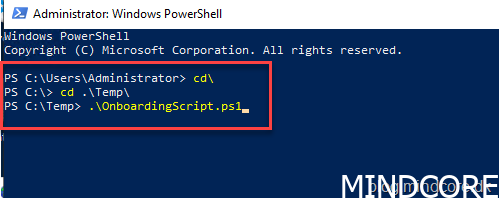

Run the script

clip_image026

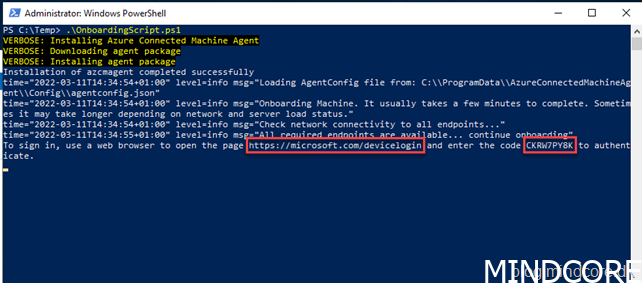

The script will ask you to open a browser and browse https://microsoft.com/devicelogin and enter the code.

clip_image028

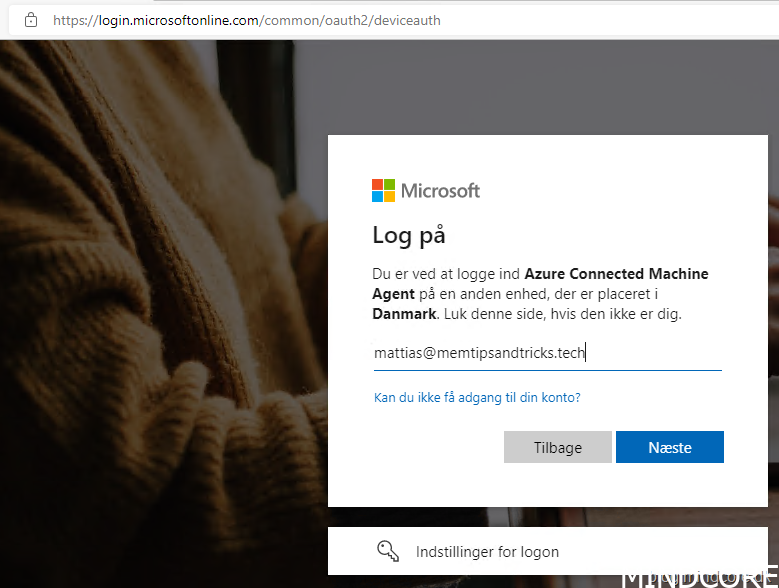

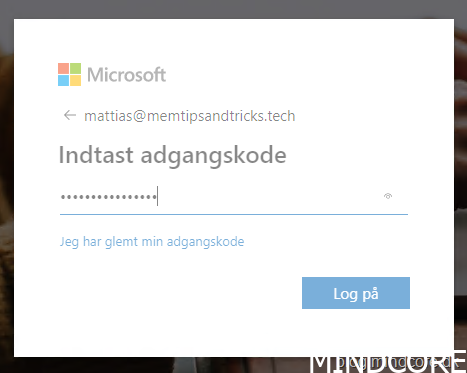

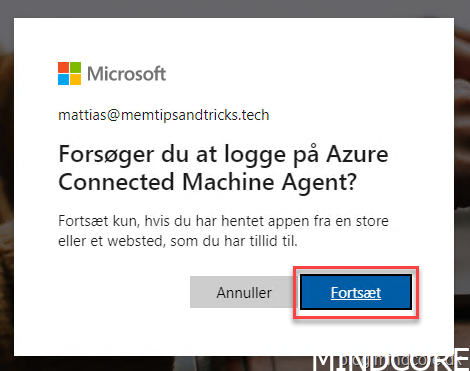

You will be asked to insert your credentials which have permission to add the server to Azure Arc

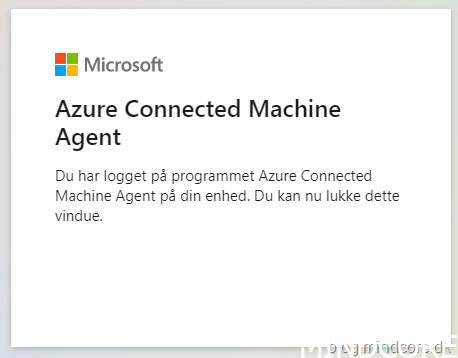

You can close the browser now

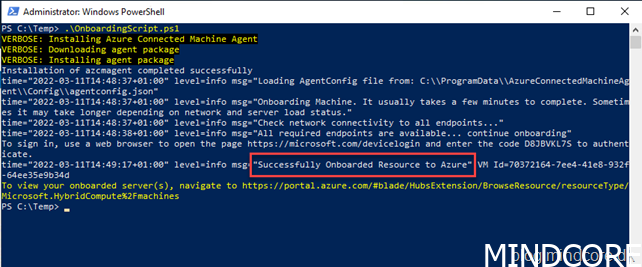

A while later it will tell you it was onboarded.

clip_image034

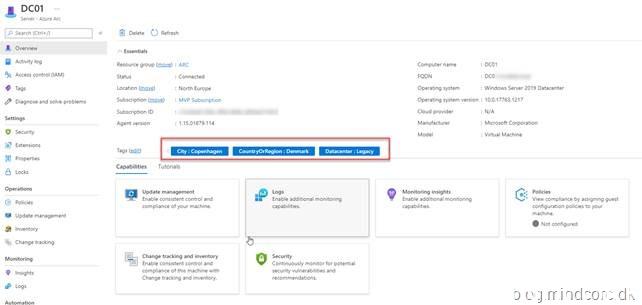

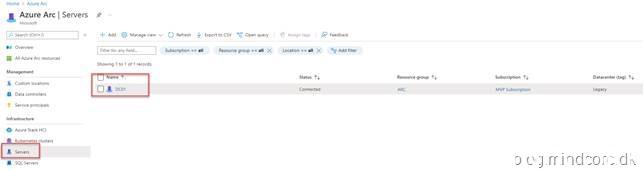

And if you go to the Azure Arc portal under servers you can now see my server and start managing it.

clip_image036





clip_image038


Summary

Modern server management using Azure Arc is cool. It really has its potential and it is easy to use. If you have not yet seen this area of managing, you better get started.

Happy testing!

References:

Azure Arc overview – Azure Arc | Microsoft Docs
